New Spicer 3-4-7261-1X end yoke 34 spline 1480 series D4TZ-7089-A
New Spicer 3-4-7261-1X end yoke 34 spline 1480 series D4TZ-7089-A
New Spicer 3-4-7261-1X end yoke 34 spline 1480 series D4TZ-7089-A
New Spicer 3-4-7261-1X end yoke 34 spline 1480 series D4TZ-7089-A
Ford

New Spicer 3-4-7261-1X end yoke 34 spline 1480 series D4TZ-7089-A

Regular price $425.00 $0.00 Unit price per
Shipping calculated at checkout.

The listing price includes free shipping to the lower 48 United States.

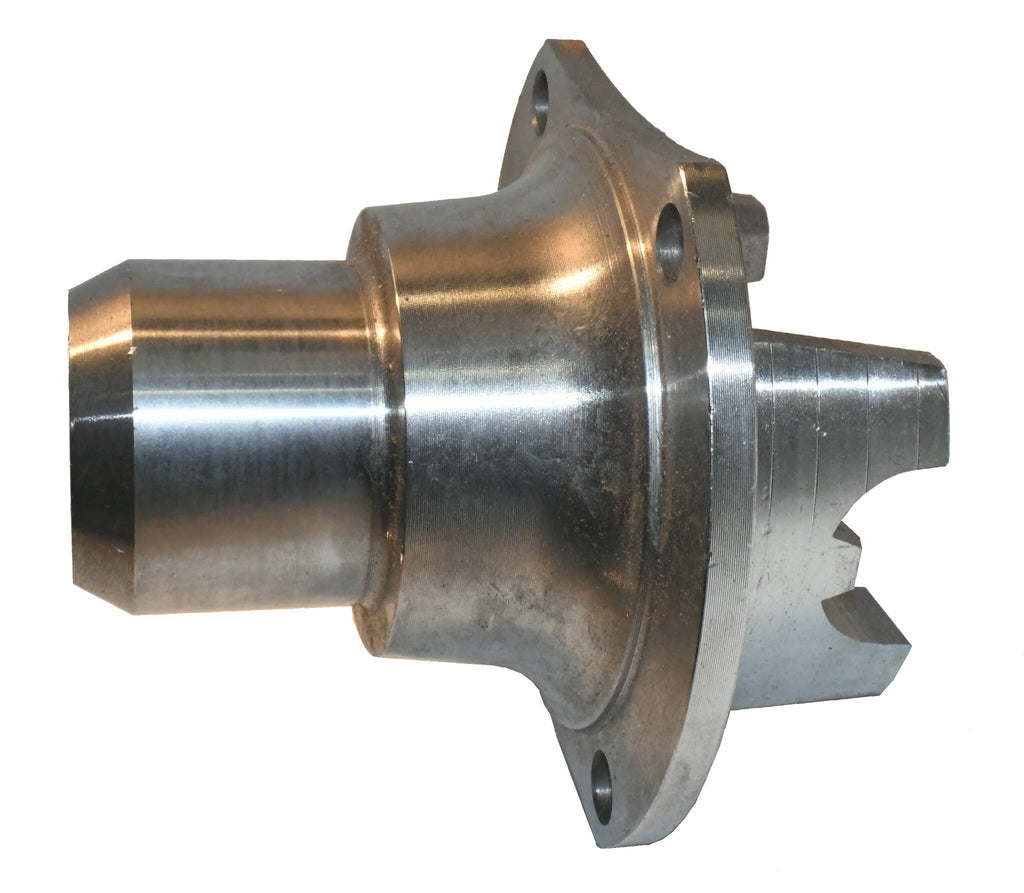

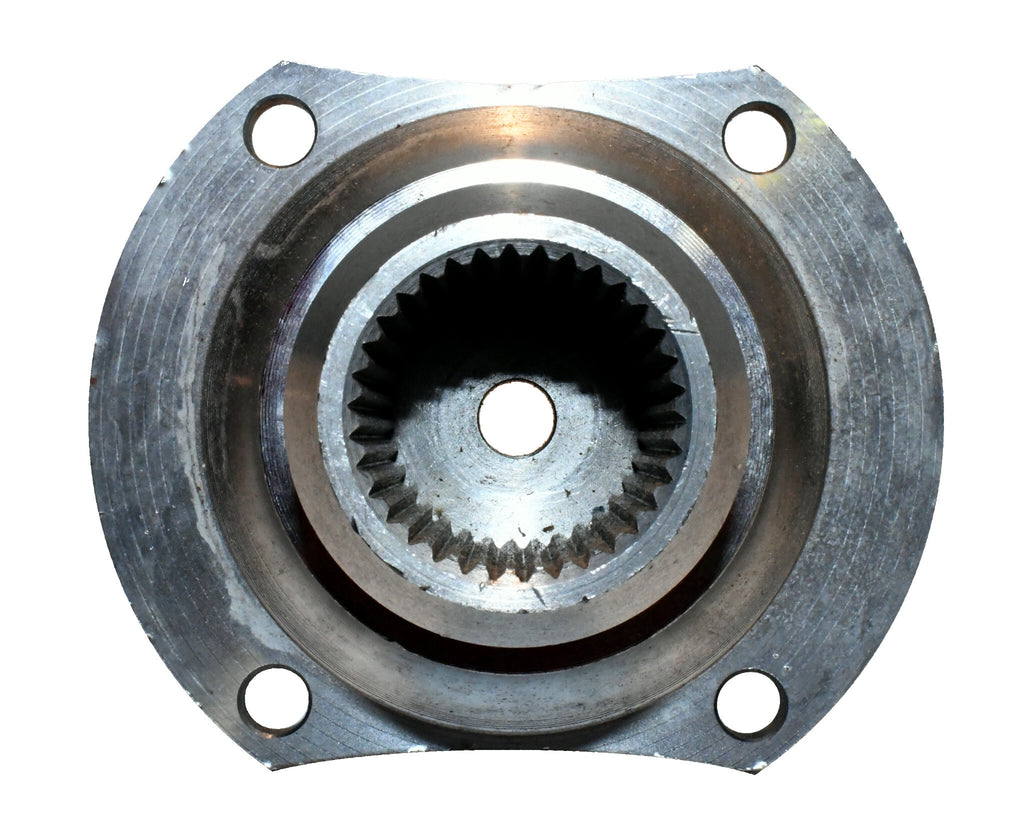

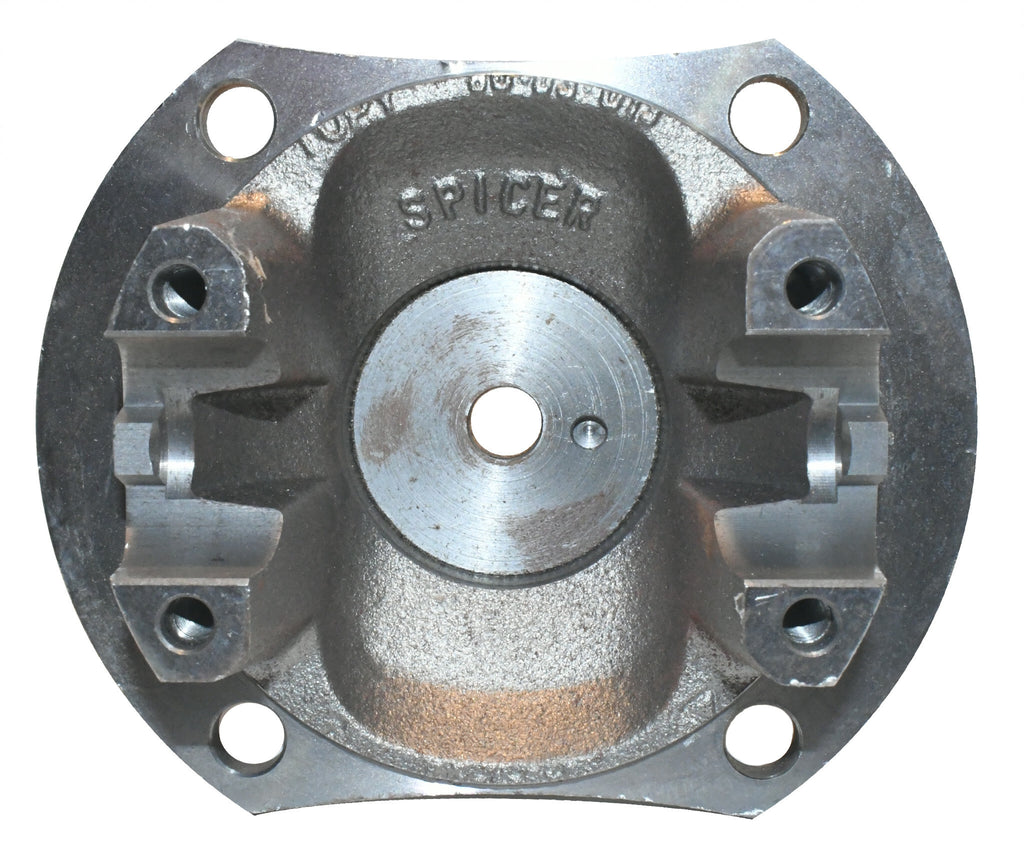

This is one brand new differential end / pinion yoke from Spicer.  This part is for pinions with 34 splines; please make sure you are replacing a XX spline yoke.  It is compatible with 1480 series u-joints.

These items have been stored in assembly line packaging, not in retail packaging.  Small scuffs or abrasions and some surface corrosion may therefore be present; this will not affect the operation of the part. This is a brand new part; it has never been installed on a vehicle.  This is not a reproduction or copy or remanufactured part.

Product Specifications:

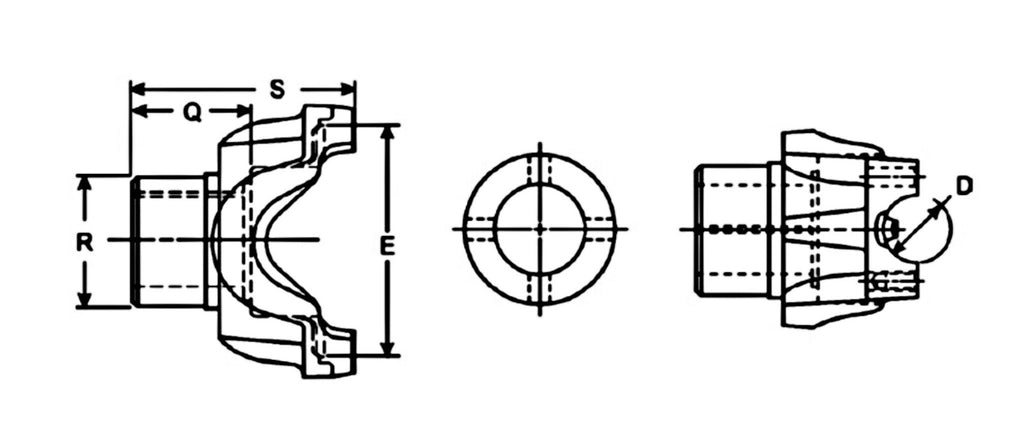

(Please refer to illustration)

Specification

Value (inches)

Series

1480

C/L To End Hub S

5.562

Hub Diameter R

2.562

Involute Spline

Y

Length Thru Hole Q

2.75

Major Diameter

1.79

Spline Count

34

Type

Splined Hole

Yoke Type

Bearing Strap

OEM Interchange

This part is interchangeable with the following part numbers:

Manufacturer

Part #

Ford OE

D4TZ-7089-A
